Modular Kitchen Planning –A 2D 9'×8' Olive Green Kitchen Layout for Modern Homes

Why Dimensions Matter

Oven unit dimensions should allow safe usage and proper ventilation.

Sink unit dimensions must provide enough space for washing while accommodating storage below.

Open kitchen dimensions should ensure clear movement between cooking, storage, and cleaning zones.

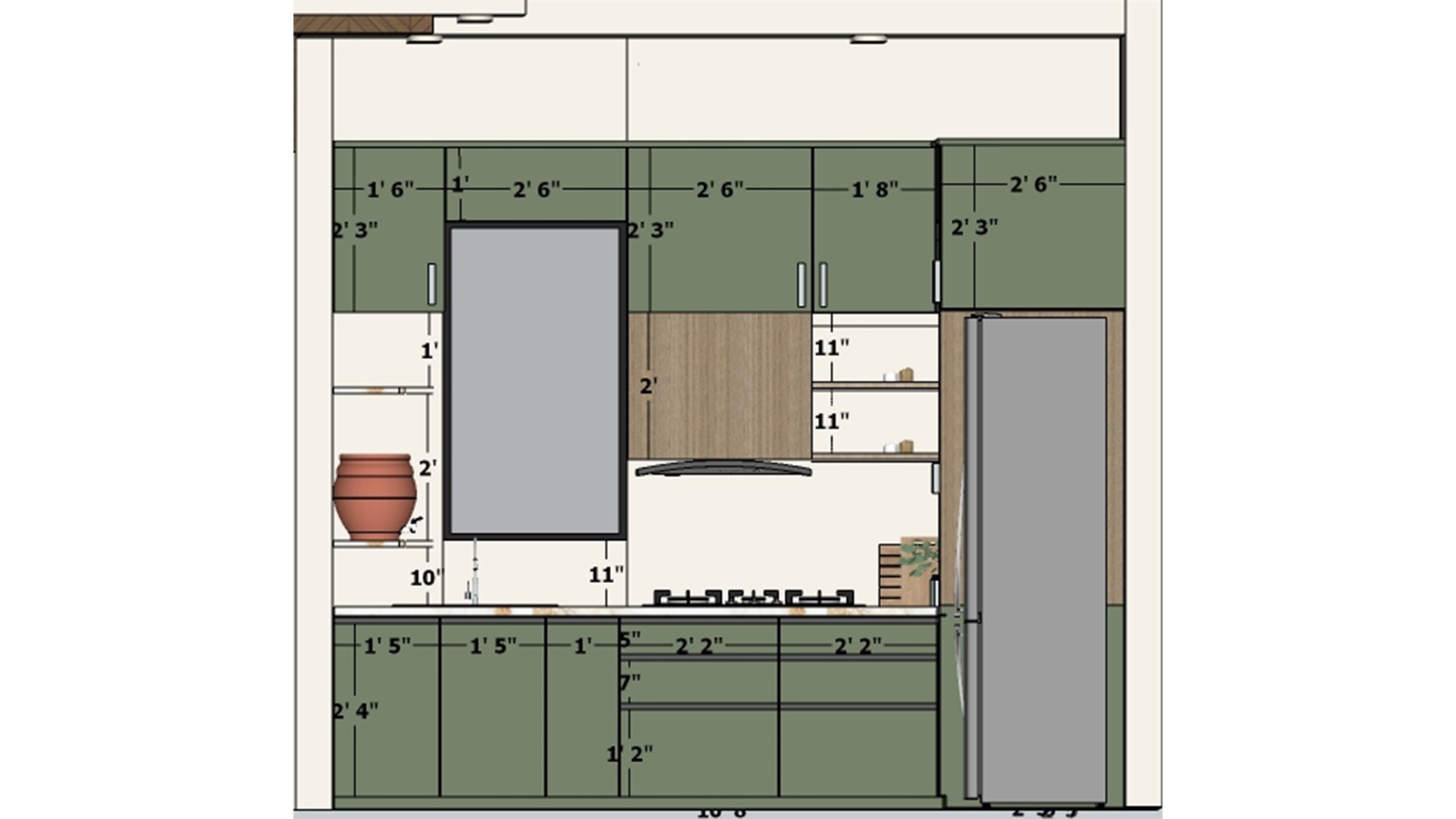

By preparing a 2D shelf layout before execution, homeowners and designers can visualize how each unit will function in everyday use.

Base Unit Layout: Sink, Pull-Outs & Storage

The base units in this 9'×8' kitchen are designed for maximum convenience:

3 ft Sink Unit:

1 ft Bottle Pull-Out:

2 ft Drawer Unit:

• Top Tier for keeping cutlery, knives, and small tools.
• Middle Tier for keeping everyday essentials like cups, mugs, and saucers.
• Bottom Tier for keeping plates, serving bowls, larger utensils and other cookware.

2.5 ft Fridge Slot:

This sequence is not random—it is designed to make everyday cooking smoother.

Oven Unit & Practical 2D Planning

The gas oven unit is positioned strategically to keep preparation, cooking, and cleaning aligned. Referring to the oven 2D size ensures it integrates perfectly within the base unit without wasting valuable inches. Proper placement also improves safety, allowing enough clearance from adjacent storage and wall units.

This is where 2D shelf planning truly shines—before finalizing installation, homeowners can see how the oven interacts with surrounding drawers, ensuring comfort and efficiency.

Wall Units, Open Shelves & Lofts

Above the base units, wall-mounted cabinets and shelves maximize storage without overwhelming the design.

• Wall units:

  Wall units with shutters provide dust-free storage for everyday groceries and cookware like cups and dishes.

• Open shelves:

  Easy to reach spots for daily spices, jars or even decorative pieces to break the monotony keeping the kitchen lively.

• Lofts:

  High storage are perfect for bulky items like large utensils or rarely used cookware, ensuring that daily-use items remain at arm’s reach.

This vertical layering of 2D shelf and cabinet design makes the kitchen look organized, clean, and modern.

Smart Tips for Compact Kitchens

Apply the Work Triangle Principle – Maintain optimal distances between the sink, fridge, and oven unit to ensure smooth workflow and efficiency.

Prioritize Thoughtful Design – Plan modular kitchen dimensions carefully so that every element, from base units to 2D shelves, fits seamlessly without overcrowding.

Select the Right Color Palette – Light tones such as olive green, ivory, or beige help enhance space perception and create a modern, airy atmosphere.

Utilize Bottle Pull-Outs – Slim pull-outs are ideal for organizing oils, spices, and sauces while maximizing narrow spaces.

Integrate Mixed Storage Solutions – Combine wall cabinets, open shelves, and lofts to achieve a balance of accessibility and long-term storage.

Conclusion

A modular kitchen isn’t just about looks—it’s about thoughtful planning. By focusing on kitchen interior dimensions, oven unit dimensions, and the right use of 2D shelves, you can transform even a 9'×8' kitchen into a practical and stylish cooking space.

The olive green kitchen we explored proves that with smart placement of the sink, oven, fridge, and lofts, every corner can serve a purpose. In the end, the right planning ensures your kitchen feels bigger, works better, and makes cooking an experience you actually enjoy.
